PRODUCT NEWS | Schneider's Compact NSXm MCCB

A new, smaller-sized moulded case circuit breaker (MCCB) is now available.

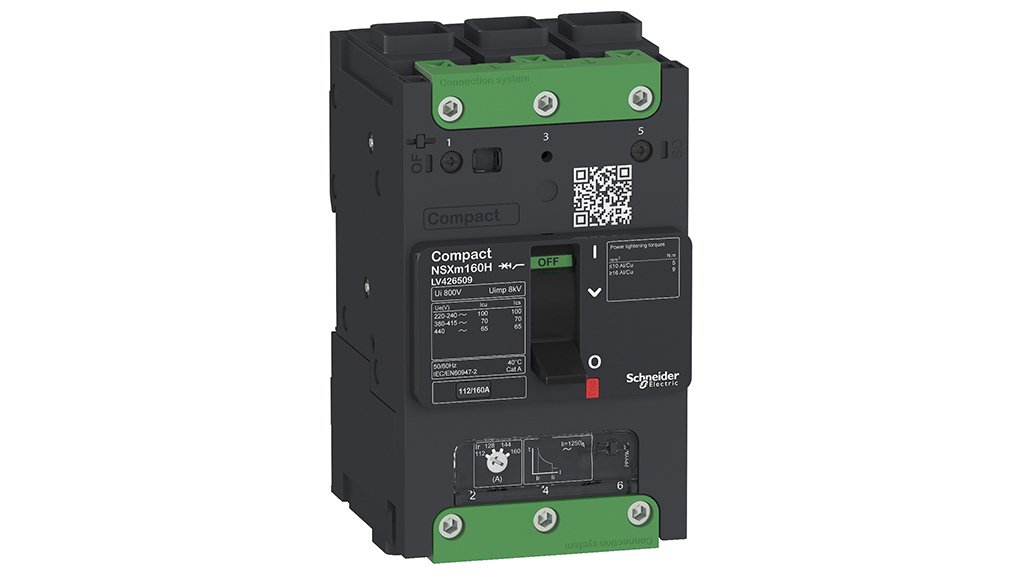

Schneider Electric's ComPact NSXm MCCB is the smallest and newest addition to our range of Schneider Electric products.

Specifications of the ComPact NSXm MCCB are:

• New smaller frame size
• Dimensions: width 81 mm, height 137 mm, depth 80 mm
• Flexible installation -  can be fitted in any position, switchboard or wall-mounted
• Nominal current: 16 A to 160 A
• Five breaking capacities: 16 kA, 25 kA, 36 kA, 50 kA, 70 kA at 415 V
• Integrated earth leakage protection by means of MicroLogic Vigi earth leakage circuit breaker
• Thermal-magnetic protection
• Built-in DIN rail and plate mount capability

Benefits of the unit include:

• Flexible installation
• Saves space as a result of vertical plate mounting
• EverLink is an innovative cable connection method with patented creep-compensating technology that is built directly into the terminal?
• Integrated earth leakage protection is now available in the MCCB frame size ?
• Field-installable accessories and one-click auxiliaries ?
• Auxiliaries are visible through flags and a window
• Suited to all standard applications, including: ?
• Standard applications in industry, building and infrastructure?
• Low-voltage switchboards (as feeder in drawers) for power control centers?
• Low-voltage panel boards (as incomer) or sub-panel boards (as feeder)
• Machines (as incomer) — HVAC, packaging, lifting, pumping, conveying?
• Control panels — water treatment, tunnel, in-automation solutions?

We are the largest distributor of Schneider Electric products in South Africa and boast in-depth Schneider product knowledge and technical expertise.

CHAT to us for a Schneider solution for your facility!
