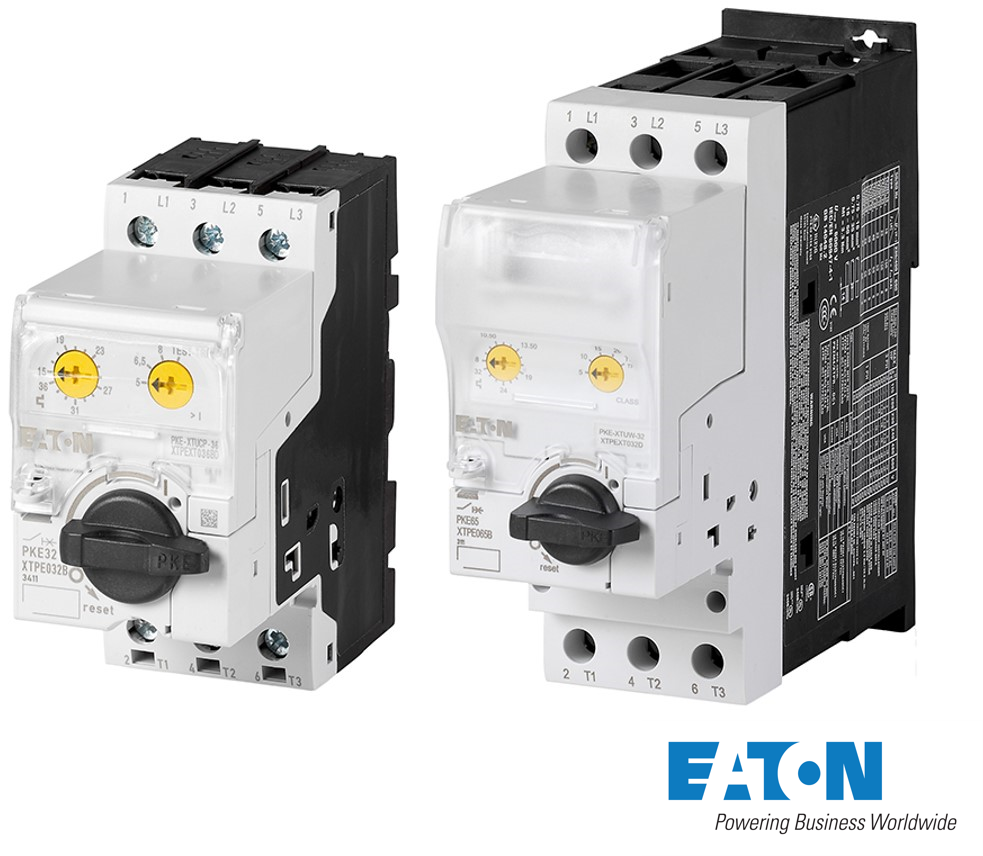

Thanks to their special features, the Eaton Moeller series motor-protective circuit breakers with electronic overload protection complement the PKZ range and offer a good alternative to MCBs with bimetallic strips. Due to the compact and modular design featuring plug-in trip blocks, they offer maximum flexibility in the current range up to 65 A. By adding the PKE-XTUCP trip blocks, you can quickly turn a PKE motor-protective circuit breaker into a PKE circuit breaker for system and cable protection.
Core features
- Hand-operated motor-protective circuit breaker in accordance with IEC/EN 60947-4-1, VDE 0660 Part 102
- Rotary handle with ON & OFF switch-position indicator
- Push-in trip block up to 65 A with visible isolating distance
- If used in conjunction with the appropriate accessories, the circuit breaker can be turned into main switch or emergency-stop switch in accordance with EN 60204 and/or VDE 0113
- Isolating characteristics in accordance with IEC/EN 60947-3
- UL/CSA (including Types E and F) approvals for the North American market
- SmartWire-DT integration
- Short-circuit proof up to 100 kA (400 V) up to 32 A, 50 kA (400 V) up to 65 A
- Circuit breaker width: 45 mm up to 36 A / 55 mm up to 65 A
Connections with just one clever “click” – the PKE electronic motor-protective circuit breaker with Push-in technology
The Push-in terminals enable control-panel wiring with just one simple click. This tool-free connection technology makes wiring even faster, safer and more efficient. The PKE motor-protective circuit breakers with electronic wide-range overload protection and plug-in trip blocks offer a viable alternative to bi-metallic solutions in the current range up to 65 A.
