When vibration increases beyond normal levels, it may be a sign of alignment issues or source of trouble. In order to avoid costly downtime, you will need fast and actionable answers. In this article, we outline when and how to use & set-up vibration monitoring on assets.
Missed out on the first article in the series? Click below to catch up now:
Part One – Understanding vibration: Causes and effects
Why choose vibration monitoring?
The need for actionable data in plants and other facilities is typically unquestioned by most reliability and maintenance teams. Where people typically diverge is in a few areas:
- When to measure/gather data
- How frequently to measure
- Technologies to add to assets

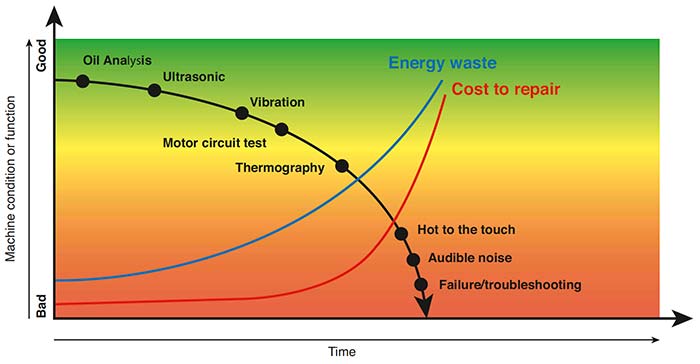

The P-F curve above shows the time interval between potential failures on the upper left until machine failure occurs on the lower right. Most assets follow a curve in their lifecycle, from good to progressively worse, until they completely fail.
Many reliability industry leaders feel using this P-F interval is important because:
1. Long before an asset fails, it usually begins to consume more energy and lose overall performance.
2. The earlier a problem can be detected and corrected, the less it costs to repair (an ounce of prevention is worth a pound of cure).
Certain technologies have the ability to detect emerging failures long before the asset fails. These are often called “predictive technologies,” and are typically part of condition monitoring programs. This is a theoretical framework that may vary from asset to asset, and the point is not to say that personnel should repair a machine at the earliest sign of failure because it may be too early. These early indicators simply signal that additional maintenance actions, such as lubricating the bearings or beginning to plan and schedule maintenance, may help avoid unexpected failures and downtime. These technologies include:
- Oil analysis
- Ultrasound
- Vibration
- Motor circuit testing
- Thermography
Each technology may be used in combination or individually.
When should vibration screening be used?
Every machine component produces a unique vibration signal. Signals displayed in the spectrum often form characteristic patterns. Pattern recognition is a key part of vibration analysis, but significant training and experience are necessary to recognize and read the patterns. Vibration analysis can watch bearing wear across 12 to 18 months as they go from slight wear (no action) to extreme wear (replace bearings immediately). Oil analysis can only be performed on oil-cooled bearings (fewer and fewer are used every day). Ultrasound finds bearing wear too early to replace the bearings (use to know when to grease the bearings instead).

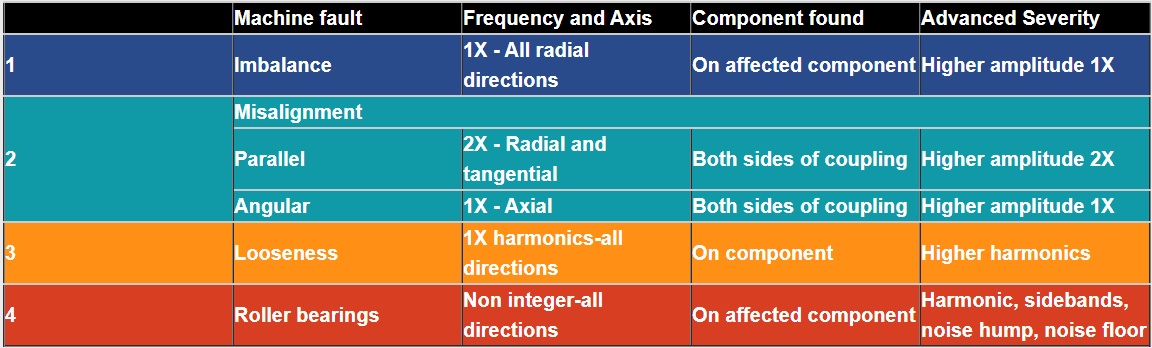

Table 1 below is a simplified overview of the patterns used to recognize the four most common machine faults, particularly in rotating assets.
Vibration screening can identify abnormalities caused by most of these faults as they begin — in the early stages, providing precipitous warning of impending failure. The severity of the four common faults can be tracked over time based on the history from hundreds of thousands of machines that have been analyzed by many vibration experts over 30 years. This knowledge and experience have been incorporated into rule-based algorithms and a baseline database that have been proven to be effective on standard rotating machines — motors, pumps, fans, compressors, blowers and single-shaft spindles.
Handheld vibration meters can be used for route-based, preventive strategies. A more flexible method is screening with continuous remote, wireless sensors.
Benefits of Vibration Monitoring and Analysis
Click HERE to learn about the benefits of monitoring and analyzing vibration.
Regardless of the method used, vibration technology can provide reliability and maintenance teams with actionable data that can help determine when further analysis is required to decide when steps such as re-lubrication, repairs or replacements should be made.
